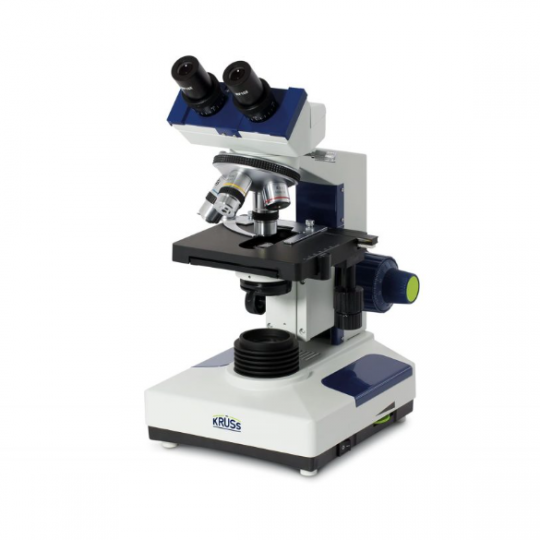

Binocular microscope MBL2000
| Specifications: Binocular microscope MBL2000 | |||||
|---|---|---|---|---|---|
| Microscope head | Oblique view Symmetrical eye distance adjustment (55-75 mm) Dioptre compensation with compensation scale |
||||
| Eyepieces | 10X eyepieces, focus length: 25 mm | ||||
| Revolving nosepiece | 4-fold | ||||
| Objectives | Achromatic objectives:
|
||||
| Condenser | Double-lens ABBE condenser (NA 1.25) with Iris diaphragm, height adjustment and filter holder (blue, yellow, green included) Optional: dark-field condenser |
||||
| Illumination | Halogen lighting with brightness control | ||||
| Mechanical stage | Graduated XY mechanical stage with coaxial operation with marker scale 0.1 mm graduation Range of motion: left-right 74 mm, front-rear 30 mm |
||||
| Stand | Made of metal with coaxial coarse/fine drive in the 30 mm range Right-hand coarse drive with gear adjustment, left-hand coarse drive with quick-focusing device Accuracy of the fine drive: 0-200 μm, graduation 2 μm |
||||
| Devices basic data | |||||
| IP code | IP20 | ||||
| Dimensions (W x H x D) | Microscope: 190 mm x 400 mm x 230 mm | ||||
| Weight | 6 kg | ||||
| Temperature data | |||||
| Ambient temperature | 0-40° C | ||||
| Ambient humidity | 10-90% (non-condensing) | ||||
| Electrical data | |||||
| Operating voltage | 100 – 240 Volt | ||||
| Rated frequency | 50/60 Hz | ||||
