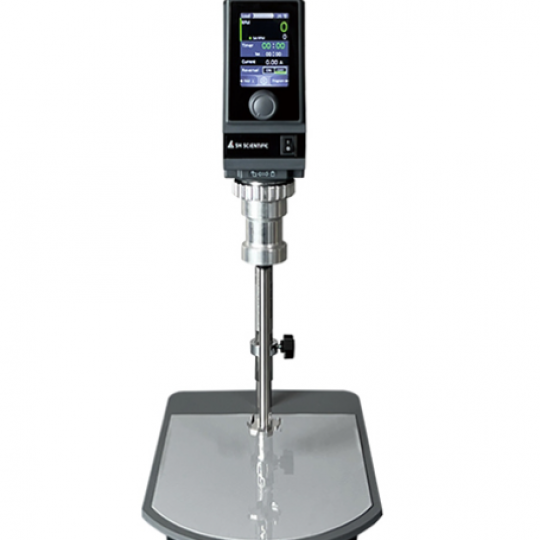

Homo Disperser
| Model | SH-HD-SET | ||
|---|---|---|---|
| Speed Range | 500 to 8,000 rpm(without load) | ||
| Speed Control Resolution | 10rpm | ||
| Maximum Volume (H2O) | Max. 5 Lit. | ||
| Motor Wattage | 300W | ||
| Working Direction | Forward & Reverse (Can change automatically by program operation) |
||
| Motor Type | Brushless DC Motor | ||
| Safety Devices | Overload, Current & Heat Protector for Motor, Electric Error Code Display | ||
| Permissible Temp. & Humidity | 5℃~40℃, <80% | ||
| Setting Tool | 'SH-HDT' Homo Disper Tool | ||
| Material | Turbine | SUS316 | |
| Shaft | SUS304 | ||
| Controller | Digital PID Feedback Control High Performance MCU (Power mode available : Non Feedback control) |
||
| Timer | 99hr 59min | ||
| Display | High Fidelity Touch Color 3.5inch LCD Display | ||
| Others – Special function | Current monitoring in real time Motor Temp. monitoring in real time Favorite setting function (Total 8ea) Real Time Monitoring and date back up by USB port |
||
| Program Operation | 9 Programs, 11 Steps | ||
| Dimensions (wxdxh) & Net Weight | 80 x 185 x 260 mm, 10.39kg | ||
| Packing Size (wxdxh) & Gross Weight | 290 x 800 x 180 mm, 12.14kg | ||
| Power Consumption | 350W | ||
| Power Supply | 1 Phase, AC 120V, 60Hz or AC 230V, 50/60 HZ | ||
| Accessories | SH-HDT, SH-OSSR040 | ||
