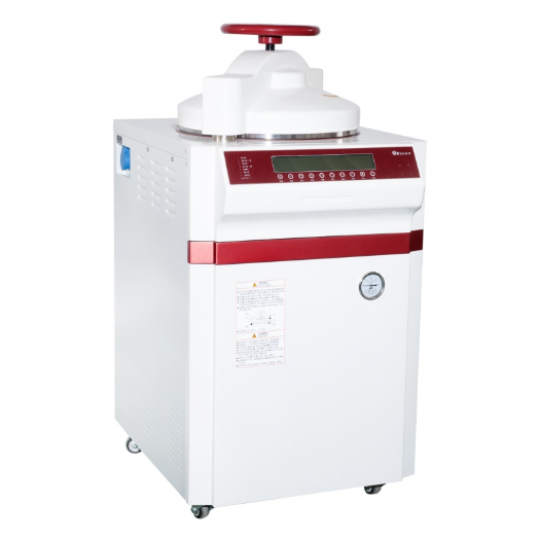

85L Performance Type Laboratory Vertical Autoclave Steam Pressure Sterilizer
Model: BXM-85FI
Product Origin : Boxun - China
The autoclave is the equipment which utilizes the pressure saturated steam for sterilizing goods quickly and reliable. It is a perfect equipment for sterilizing the medical equipment, dressings, glassware, liquor culture mediums, etc. We support OEM, and the MOQ is 1.

Ứng dụng:

Products Information
Comment

85L Performance Type Laboratory Vertical Autoclave Steam Pressure Sterilizer
Model: BXM-85FI
Product Origin : Boxun - China

Product Description

PMMA II microcomputer intelligent control system;

Touch screen enables real-time viewing of the operating parameters and working status;

Positive pressure pulse, 6 level cold air discharge procedure;

Equipped with 8 fixed programs +6 custom programs;

After sterilization, the 6-stage pressure relief rate is optional;

With three-level authority management;

The whole machine anti - hot design, heat insulation and beautiful;

Hand wheel quick opening structure with dual protection of pressure self-locking and self-inspection;

Equipped with 100-hour countdown reservation function;

One key electric drainage;

Equipped with boiling point setting function;

Standard equipped with condenser + air cooling + secondary water-cooling rapid cooling system;

One waterproof socket, two 485 ports and G1/2A standard test pipe thread holes;

Fault detection function, over temperature shutdown protection, water cut-off protection, overpressure self-relief protection, anti-hot protection, overload protection;

Short circuit protection, leakage protection, independent electronic overvoltage protection and other multiple security.

Equipped with vacuum drying function, to avoid the secondary pollution of transfer drying after sterilization.

Product Details

- Volume [L]: 85L

- Drum Diameter [mm]: 400mm

- Power Supply [V, Hz]: 220±10%, 50±2%

- Environment Temp. [°C]: 5~40°C

- Environment Humidity [%RH]: 20~80 %RH

- Power [kW]: 5.2kW

- Sterilization Temp. [°C]: 105~135°C

- Temp. Fluctuation [°C]: ˂±1°C

- Temp. Uniformity[°C]: ≦±1°C

- Melting Temp. [°C]: 50~100°C

- Drying Temp. [°C]: 80-130°C

- Heat Preservation Temp. [°C]: 40-60°C

- Sterilization Timer Range [min]: 0-120

- Drying Time. [min]: 10-6000

- Melting Timer Range [min]: 0-6000

- Heat Preservation Timer Range [min]: 0-6000

- Reservation Range [min]: 0 ~ 99hr60min

- Design Pressure [MPa]:0.38 MPa

- Working Pressure [MPa]: 0.22 MPa

- Pressure gauge indicating Range [MPa]: -0.1-0.5 MPa

- Housing Dimensions W×D×H [mm]: 585*750*1165mm

- Basket Dimensions [mm]: Ø360*270mm

- Number of Baskets [pc]: 2

- Net Weight [kg]: 131kg

- Gross Weight [kg]: 160kg

- Package Size [mm]: 730*900*1330mm
