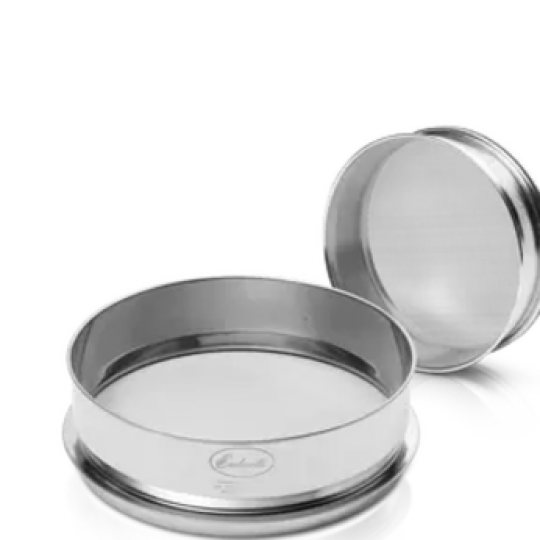

Woven Wire Sieves

The new Sieve Shaker EFL 300 combines the best features of the EFL2 whilst incorporating modern sieve shaker technology. The EFL 300 is still extremely robust but at the same time lightweight and more powerful than its predecessor - heavier and larger samples can now be sieved. The sieve shaker EFL 300 is very versatile. Amplitude setting is now standard. The heavy electric motor is replaced by the electromagnetic system found in all modern sieve shakers. Its lighter form means that it can be either floor standing or even bench mounted making it suitable for both, laboratory and industrial environments. Sieving parameters are set by the remote control unit. Its functions are logical and very simple to operate. Product Advantages New electromagnetic drive Adjustable amplitude Floor or table mounted Suitable for wet or dry sieving Digital controls for easy and reliable operation via external interface Economical

The Consistometer is a low cost, durable, instrument for accurately checking laboratory or production samples against consistency, viscosity or flow rate standards. It uses little bench space and is yet probably the simplest, most accurate method of conducting a variety of flow associated tests. It is already widely used in the chemical, paint, cosmetic and food processing industries. The consistometer provides a single parameter for a variety of flow tests which can be carried out over any period under as near identical conditions as possible. The Consistometer or Bostwick Consistometer is manufactured from 316 food grade stainless steel engraved with a series of precise graduations at 0.5 cm intervals. To ensure accurate reproducibility, the instrument is levelled using the adjustment screws and spirit level.

The name says it all: The new Titan 450 is Endecotts' most powerful sieve shaker! It is built for large sieve diameters and can take up to 7 x 450 mm diameter test sieves! The Endecotts Titan 450 is a vibrating shaker that is used to carry out sieve tests in conjunction with sieve stacks for particle sizing of various material samples. It is based on an electromagnetic drive, with special carbon fibre springs that are set at a calculated angle to provide a horizontal twist, as well as a vertical movement to carry out efficient sieve tests. The Titan 450 has a remote control unit that houses a digital controller to vary the vibration, process time and intermittent settings. Product Advantages Electromagnetic drive for quiet and virtually maintenance free operation Easily set to maximum efficiency Digital controls for easy and reliable operation via external interface Economical No mechanical moving parts Suitable for wet or dry sieving

Product Advantages Easy-to-use sieve clamping system Accepts up to 8 full height 200 mm (8") diameter sieves Suitable for dry and wet sieving 10 amplitude settings & digital timer 3D sieving motion allows for high separation efficiency and non blinding sieving action Different voltages available No mechanical moving parts Compact & portable Easily set to maximum efficiency Complies with the requirements of AASHTO T 27

Endecotts manufacture a wide range of perforated plate sieves for the many industries that require them. These are available in diameter sizes of 200*, 300*, 400 and 450 mm.Aperture sizes range from 125 mm to 4 mm in square hole and 125 mm to 1 mm in round hole sieves.Perforated plate sieves can be supplied in frame materials of stainless steel or brass (*200 and 300mm) and are all manufactured to the highest engineering standards to ensure quality and accuracy. Woven wire sieves and perforated plate sieves are available to every national and international standard. Quick links: International Test Sieve Series (ISO) American Standard Test Sieve Series (ASTM) - Product Advantages Precision frame (ensures consistent nestability) Precise aperture (in accordance with ISO 3310-2, ASTM E323 or other specifications) Natural fillet (free flowing of sample) Totally sealed (no crevice to lose material) Evenly tensioned mesh (ensures accurate analysis) Safe edge (big radius makes it comfortable to handle) Serial number (ensures full traceability)

The Minor 200 has been developed and manufactured to combine low cost with the benefits of a well-designed and engineered shaker. It incorporates many features usually found only on larger, more expensive models. It is ideal for the use in laboratories and plants since it is compact and genuinely portable (weighing only 17kg). The sieve stack is held firmly in position by a clamping belt system. Removing it allows the whole unit to be stored in a space less than 200 mm high. There are no rotating parts in the Minor 200 - consequently it is quiet in operation and maintenance free. Product Advantages Electromagnetic drive for quiet and virtually maintenance free operation Compact & portable (weighing only 17 kg) Requires only small storage space due to small footprint and easily removable clamping belt system (included) Easy to use Different voltages available Complies with the requirements of AASHTO T 27

The new Octagon 200CL for precise, reproducible and error-free sieving processes competes with the most advanced sieve shakers in the world. Several unique features have been developed specifically for this sieve shaker, including the ‘Closed Loop’ amplitude control for ultimate reproducibility. The Octagon 200CL is designed to work with Endecotts’ SieveWare, the new software for easy evaluation and documentation of the sieving process.

Endecotts hand held sample dividers will subdivide material samples into two smaller portions by a single pass.Further subdivisions can be attained by multiple passes. Each subdivision created with an Endecotts sample divider retains the characteristics of the original sample. Two different sample divider versions are available: One with 6.3 mm slot width and one with 12.5 mm slot width. Product Advantages Unit consists of divider plus 3 receiving boxes Stainless steel with slot widths Will subdivide material samples into two smaller portions by single pass Each subdivision retains the characteristics of the original sample

Product Advantages Advanced air jet technology for fine particles, usable for dry material 20 µm upwards Adjustable nozzle speed, 5 - 55 rpm Extremely efficient & fast sieving times Sieving action keeps apertures clear Air flow fluidises and helps to separate sample Ideal for electrostatic materials Cyclone & industrial vacuum available as accessories Maintenance free

An Ultrasonic Cleaner quickly and gently removes sample residues from test sieves, without damaging the mesh material. An ultrasonic cleaner not only increases the lifetime of test sieves, it is especially recommended for small apertures. For reliable results, cleaning is recommended after each analysis. Product Advantages Has been specially designed for cleaning test sieves Suitable for general laboratory use. Easy to operate and extremely efficient to use
